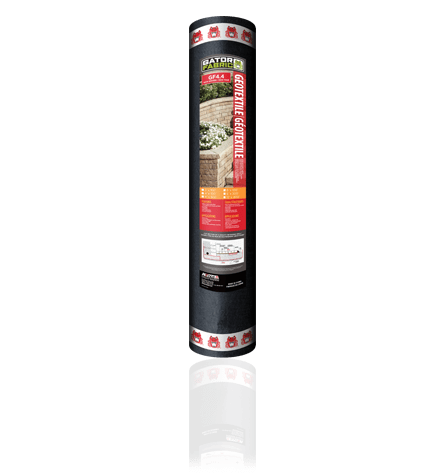

Gator Fabric GF 4.4
Gator Fabric GF 4.4
Gator Fabric GF 4.4 (100 lbf) is a needle punched non-woven geotextile made of polypropylene fibers. Gator Fabric GF 4.4 geotextile is ideal for drainage, filtration and will allow water flow of 135 gallons per minutes per square foot (613 L/min/sq. m.) in paver or retaining wall applications. Its filament fibers are used for soil separation and drainage. They combine high durability along with excellent physical and hydraulic properties. It is non-biodegradable and resistant to most soil chemicals.
- Specially treated to be hydrophilic, it allows high-water flow (135 Gal/min/sq. ft. (613 L/min/sq. m.))
- Drainage and filtration
- Soil separation
- Erosion control
- UV-Resistance
- Inert to soil chemicals (Alkalis, Acids)
- Inert to biological degradation
- Easy to handle
- High strength/dimensionally stable
APPLICATIONS
- Drainage control
- Protection against erosion
- Behind retaining walls
- Paver sub base foundation
- Gator Base foundation application
- General landscape
- Soil separation
| Product | Size | Per Box | Per Pallet |
|---|---|---|---|
| GF4.4 NGF44NW-03100 | 3′ x 100′ (0.9 x 30 m) | 6 | 4 boxes x 6 = 24 rolls / pallet |
| GF4.4 NGF44NW-04100 | 4′ x 100′ (1.2 x 30 m) | 6 | 4 boxes x 6 = 24 rolls / pallet |
| GF4.4 NGF44NW-06100 | 6′ x 100′ (1.8 x 30 m) | 30 rolls | |
| GF4.4 NGF44NW-06300 | 6′ x 300′ (1.8 x 90 m) | 16 rolls | |
| GF4.4 NGF44NW-12400 | 12′ x 400′ (3.6 x 120 m) | 3 rolls |
